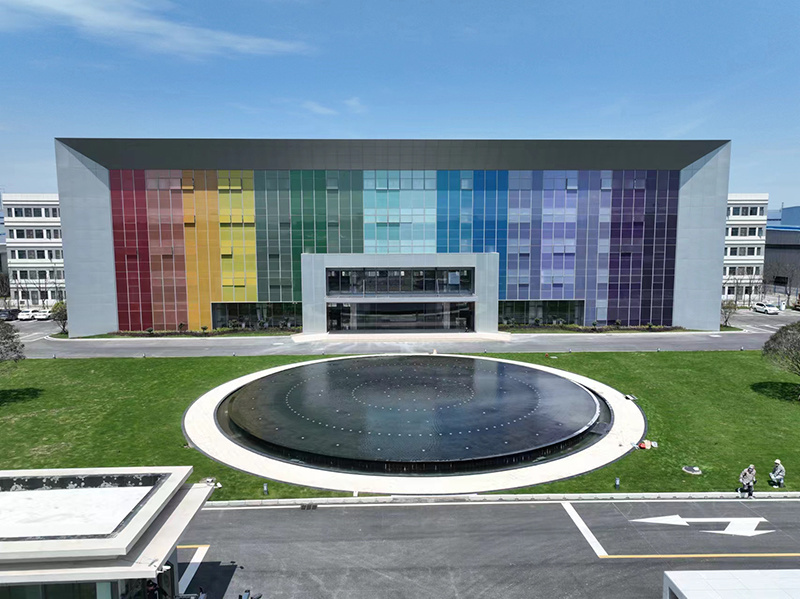

COLOR BIPV FACADE

Features

1. Aesthetically for the built environment Customized vivid color for different application scenario ;
2. Long lifetime with High reliability Construction-grade encapsulation materials, with higher weather resistance ;
3. Infrared and ultraviolet optical resistance ;
4. Flexible installation Compatible with building installation methods ;
5. IP68 resistance High standard waterproof performance;

60-120Wp/㎡ High Power Output

yzgf@yonz.com

Product Information

Product Features

1. Color products ensure both architectural aesthetics and high power generation;

2. Architectural grade infrared and ultraviolet optical cutoff;

3. Architectural grade packaging materials, long life and high reliability;

4. Compatible with screw, dry hanging and other installation methods;

5. The installation meets the requirements of building-level mechanics;

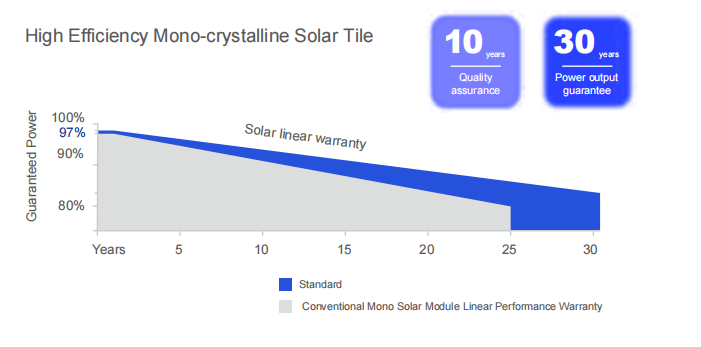

Quality Assurance

Electrical performance parameters

Component performance under STC standard (tolerance: 0 ~ +3%)	Blue line			Green line			Purple			Red line
Maximum Power Rating (Pmax/W)	80	85	90	85	90	95	75	80	85	65	70	75
voltage at the maximum power point (Vmpp/V)	11.6	12	12.4	11.6	12	12.4	11.6	12	12.4	11.6	12	12.4
current at the maximum power point (Impp/A)	6.9	7.08	7.26	7.33	7.5	7.66	6.47	6.67	6.85	5.6	5.83	6.05
Open circuit voltage(Voc/V)	14.1	14.6	15.1	14.1	14.6	15.1	14.1	14.6	15.1	14.1	14.6	15.1
Short circuit current (Isc/A)	7.22	7.41	7.6	7.67	7.86	8.02	6.77	6.98	7.18	5.87	6.11	6.33
Component efficiency ηm(%)	11.7	12.4	13.1	12.4	13.1	13.8	11	11.7	12.4	9.6	10.3	11
Component performance under NMOT standards
Maximum Power Rating (Pmax/W)	58.7	62.4	66.1	62.4	66.1	69.7	55.1	58.7	62.4	47.7	51.4	55.1
Voltage at maximum power point (Vmpp/V)	10.6	11	11.4	10.6	11	11.4	10.6	11	11.4	10.6	11	11.4
Voltage at maximum power point (Vmpp/V)	5.5	5.65	5.79	5.85	5.98	6.11	5.16	5.32	5.47	4.47	4.65	4.83
Open Circuit Voltage (Voc/V)	13.3	13.8	14.2	13.3	13.8	14.2	13.3	13.8	14.3	13.3	13.8	14.3
Short Circuit Current (Isc/A)	6.04	6.2	6.36	6.42	6.57	6.71	5.66	5.84	6	4.91	5.11	5.3
STC (standard test environment): irradiance 1000W/㎡, battery temperature 25℃, spectrum AM1.5 NMOT (nominal operating temperature of components): irradiance 800W/㎡, ambient temperature 20℃, spectrum AM1.5, wind speed 1m/s

Mechanical parameters

Cell Type	Single
Cell Size	158.75mm
Cell arrangement	42(3*14)
Component Quality	14.8kg (16.3lbs.)
Component Size	11805809mm (46.4622.830.35inches) 750mm
Cable Length	(29.53inches)
Cable cross-sectional area	4mm2(0.006inches²)
Front glass	Embossed High Transparency 4.0mm Tempered Glass
Back glass	4.0mm semi-tempered glass
Number of bypass diodes	2/3
Packaging Standards	30 tablets
border	none
junction box	IP68

Working Conditions

Maximum System Voltage	1000V/DC(IEC)
Operating Temperature	-40°C ~ +85°C
Fusing Current	20A
Static Loads	Snow Load: 5400Pa/ Wind Load: 2400Pa
Ground Resistance	≤0.1Ω
Security Level	II
Insulation Resistance	≥100MΩ
Connector	T01/LJQ-3-CSY/MC4/MC4-EVO2

Temperature Characteristics

Temperature Coefficient Pmax	-0.35%/°C
Temperature Coefficient Voc	-0.26%/°C
Temperature Coefficient Isc	+0.048%/°C
Battery operating temperature NMOT	43±2°C

I-V curve

Technical drawing

System and product certification

ISO 9001: 2015 Quality Management System

ISO 14001: 2015 Environmental Management System

ISO 45001: 2018 Occupational Health and Safety Management System
